Description
ABS WITH SUPERIOR PRINTING RELIABILITY, PERFORMANCE, AND EASE OF USE.
ABS-R is a new ABS formulation that provides superior printing reliability and performance with a 98% jam reduction for consistent, repeatable ABS prototypes, tools, and parts.

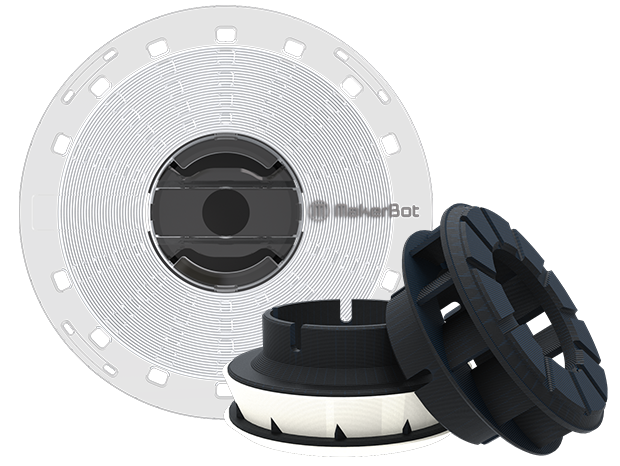

Works with RapidRinse™ Fast Dissolving Support
ABS, FINALLY AS EASY AS PLA
ABS is one of the most in-demand yet difficult materials to 3D print. METHOD X patented VECT™ 110 technology combined with proprietary RapidRinse™ support delivers incomparable ABS parts with unprecedented ease.
PRINTER COMPATIBILITY
Printers:
- METHOD X
- METHOD X Carbon Fiber
Extruders:
- Model 1XA Extruder
- Model 1C Extruder
- LABS GEN 2 Experimental Extruder
Support Materials:

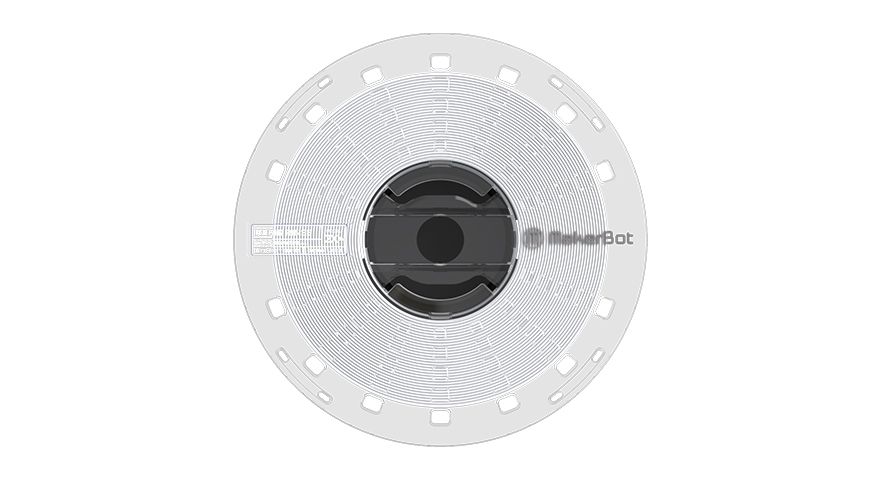

- MakerBot RapidRinse
SPOOL TYPE

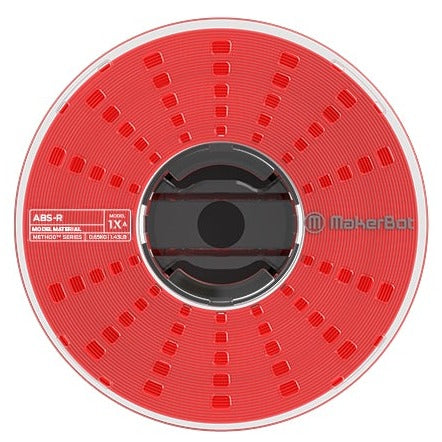

Smart Spool™ provides valuable information including material type, color, and amount remaining via an RFID chip directly to MakerBot Print, while a desiccant in the spool maintains a low moisture level inside the drawer bay.
DIMENSIONS AND WEIGHT
Spool Diameter: 21.8 cm (8.6 in)
Spool Width: 4.2 cm (1.65 in)
Material Diameter: 1.75 mm
Shipping Weight: 1.1 kg (2.4 lb)
Net Weight: 0.65 kg (1.43 lb)
STORAGE ENVIRONMENT
Store in the included a vacuum-sealed metalized polyester bag to avoid moisture absorption from air; long-term exposure to humidity can compromise material quality and performance. Make sure the built-in desiccant is in the spool to absorb any moisture exposure during the material loading process.
|
Property |
Test | ABS-R |
| Tensile Strength (MPa) | ASTM D648 | 41 |
| Tensile Modulus (MPa) | ASTM D648 | 2400 |
| Strain at Yield (%) | ASTM D648 | 2.3 |
| Strain at Break (%) | ASTM D648 | 33.4 |
| Flexural Strength (MPa) | ASTM D790 | 79 |
| Flexural Modulus (MPa) | ASTM D790 | 2600 |
| Izod Notched Impact Strength (J/m) | ASTM D256 | 129 – C/H |
| Izod Unotched Impact Strength (J/m) | ASTM D256 | 970 - C |
| Heat Deflection Temperature – 64 psi (C) | ASTM 648 | 105 |
| Heat Deflection Temperature – 264 psi (C) | ASTM 648 | 102 |
